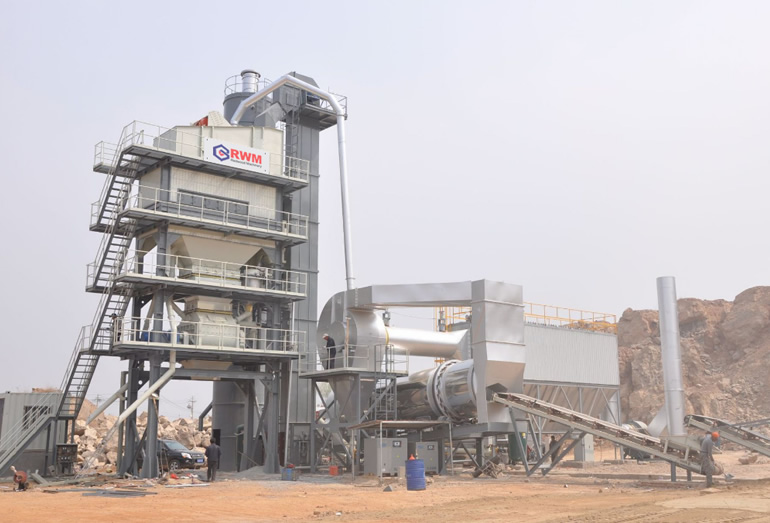

The photo shows the project site in Russia. The modular design and clearly defined interfaces between all plant components allow the utilization of local manufacturing sources. The reduction of transportation and production costs is a direct benefit for our customers.
Capacity: 80T/H
Delivery: 30 days
Warranty: 13 months
Equipment highlights: Module installation, stable output, Siemens electronic control, fully automatic computer operation
.jpg)
.jpg) |
Mixing system: Wear resistant and durable, imported wear-resistant parts, long service life. The quality control of finished products is stable, and the mixing efficiency is improved by 10%. |
 |
Drying system: Innovative technology, optimized residence time, high thermal efficiency and more energy saving. The thermal efficiency is up to 90% and the energy consumption is reduced by 15%. |
.jpg) |
Dust removal system:
The effective working area of Nomex filter bag can reach 98%, meeting the European standard emission (< 20mg / nm) ³. |
 |
Control system:
Intelligent dual computer and dual control, Siemens PLC, ABB, Schneider electric control components. |
 |
Support customization: RWM provides scheme design, which can vary according to actual needs and purchase corresponding configurations to help enterprises increase benefits. |
|
Model |
LBJ500 |
LBJ800 |
LBJ1000 |
LBJ1500 |
LBJ2000 |
LBJ3000 |
LBJ4000 |
|
|
Capacity: |
40t/h |
64t/h |
80t/h |
120t/h |
160t/h |
240t/h |
320t/h |
|
|
Weighing accuracy |
Aggregate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Asphalt |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Filler |
±0.25% |
±0.25% |
±0.25% |
±0.25% |
±0.25% |
±0.25% |
±0.25% |
|
|
Power (kw) |
143 |
185 |
205 |
368 |
520 |
760 |
1052 |
|
|
Cold bins& Output capacity |
3× 50T/H |
4× 65T/H |
4× 80T/H |
4× 120T/H |
4× 200T/H |
5× >300T/H |
6× >350T/H |
|
|
Belt conveyor& Convey capacity |
width: 60T/H |
width: 100T/H |
width: 100T/H |
width: 160T/H |
width: 200T/H |
width: >300T/H |
width: >350T/H |
|
|
burner |
Oil burner ( |
|||||||
|
Dudt filter system |
Water type (recommended) |
Water type or baghouse type upon requirement |
||||||
|
Hot elevator capacity |
60T/h |
80T/h |
100T/h |
140T/h |
180T/h |
>320T/h |
>340T/h |
|
|
Vibrate screen |
3 grades |
4 grades |
4 grades |
4 grades |
4 grades |
5 grades |
6 grades |
|
|
Vibrate screen capacity |
50T/h |
80T/h |
100T/h |
140T/h |
200T/h |
>300T/h |
>320T/h |
|
|
Hot bin volume |
8 m3 |
8 m3 |
|
22 m3 |
36.7 m3 |
80 m3 |
|
|
|
Mixer capacity |
|
|
|
|
|
|
|
|
|
Mixing cycle |
45s |
45s |
45s |
45s |
45s |
45s |
45s |
|
|
Asphalt tank volume |
30T*1 |
30T*2 |
30T*2 |
30T*3 |
30T*4 |
30T*6 |
30T*6 |
|
|
Hot mix storage bin |
60T(Optional) |
60T(Optional) |
60T(Optional) |
100T(Optional) |
120T(Optional) |
240T(Optional) |
||
|
Dust emission |
≤400mg/Nm3 water type ≤100mg/Nm3 bagehouse type |
|||||||
| Item |
Detailed |
| Parts configuration: | All pneumatic parts, reducers and electrical components adopt international first-line brands with high specifications and good quality. |
| Batching system | The arch is broken by vibration, and the arch breaking effect is good without manual tamping. |
| Burner | Under standard conditions, the fuel consumption is 5.8kg/t, and the gas consumption is 7m ³， Energy conservation and emission reduction promote production. |
| Mixer | There are recycled materials, SMA manual feeding port and modified asphalt plus fiber interface on the machine to meet the later upgrading. |
| Electric control system | Dual industrial mainframe and dual system control ensure the continuous progress of the production process and reduce the shutdown, waste products and possible accidents caused by computer failure. |
One set of RWM- Asphalt Mixing and Recycling Plant
Asphalt Mixing Plant LBJ1000 export to Russia
Asphalt Mixing Plant LBJ3000 Installing in Malaysi
