Asphalt Mixing Plant LBJ1500

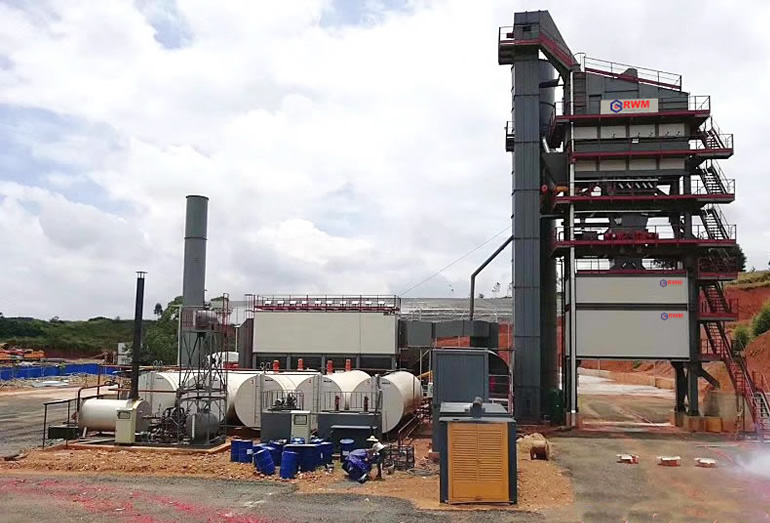

The photo shows the project site in Thailand. The modular design and clearly defined interfaces between all plant components allow the utilization of local manufacturing sources. The reduction of transportation and production costs is a direct benefit for our customers.

Capacity: 120T/H

Delivery: 35 days

Warranty: 13 months

Equipment highlights: Module installation, stable output, Siemens electronic control, fully automatic computer operation

  • Recommended reason
  • Technical highlights
  • Prodcts parameters
  • Equipment advantages
  • Engineering example
  • Online Message
Recommended reason



Technical highlights

Mixing system:

Wear resistant and durable, imported wear-resistant parts, long service life. The quality control of finished products is stable, and the mixing efficiency is improved by 10%.

Drying system:

Innovative technology, optimized residence time, high thermal efficiency and more energy saving. The thermal efficiency is up to 90% and the energy consumption is reduced by 15%.

Dust removal system:

The effective working area of Nomex filter bag can reach 98%, meeting the European standard emission (< 20mg / nm) ³.

Control system:

Intelligent dual computer and dual control, Siemens PLC, ABB, Schneider electric control components.

Support customization:

RWM provides scheme design, which can vary according to actual needs and purchase corresponding configurations to help enterprises increase benefits.





Prodcts parameters



Model

LBJ500

LBJ800

LBJ1000

LBJ1500

LBJ2000

LBJ3000

LBJ4000

Capacity:

40t/h

64t/h

80t/h

120t/h

160t/h

240t/h

320t/h

Weighing

accuracy

Aggregate

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Asphalt

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Filler

±0.25%

±0.25%

±0.25%

±0.25%

±0.25%

±0.25%

±0.25%

Power (kw)

143

185

205

368

520

760

1052

Cold bins&

Output capacity

6m3

50T/H

6m3

65T/H

6.5m3

80T/H

6.5m3

120T/H

8m3

200T/H

15m3

>300T/H

6m3

>350T/H

Belt conveyor&

Convey capacity

width:600mm

60T/H

width:650mm

100T/H

width:650mm

100T/H

width:650mm

160T/H

width:650mm

200T/H

width:800mm

>300T/H

width:800mm

>350T/H

burner

Oil burner (China top brand or Foreight brand upon requirement) (optional)

Dudt filter system

Water type

(recommended)

Water type or baghouse type upon requirement

Hot elevator capacity

60T/h

80T/h

100T/h

140T/h

180T/h

>320T/h

>340T/h

Vibrate screen

3 grades

4 grades

4 grades

4 grades

4 grades

5 grades

6 grades

Vibrate screen capacity

50T/h

80T/h

100T/h

140T/h

200T/h

>300T/h

>320T/h

Hot bin volume

8 m3

8 m3

10m3

22 m3

36.7 m3

80 m3

100m3

Mixer capacity

500kg/batch

800kg/batch

1000kg/batch

1500kg/batch

2000kg/batch

3000kg/batch

4000kg/batch

Mixing cycle

45s

45s

45s

45s

45s

45s

45s

Asphalt tank volume

30T*1

30T*2

30T*2

30T*3

30T*4

30T*6

30T*6

Hot mix storage bin

60T(Optional)

60T(Optional)

60T(Optional)

100T(Optional)

120T(Optional)

240T(Optional)

Dust emission

≤400mg/Nm3 water type ≤100mg/Nm3 bagehouse type

Equipment advantages
Item

Detailed

 Parts configuration: All pneumatic parts, reducers and electrical components adopt international first-line brands with high specifications and good quality.
Batching system  The arch is broken by vibration, and the arch breaking effect is good without manual tamping.
Burner  Under standard conditions, the fuel consumption is 5.8kg/t, and the gas consumption is 7m ³, Energy conservation and emission reduction promote production.
 Mixer  There are recycled materials, SMA manual feeding port and modified asphalt plus fiber interface on the machine to meet the later upgrading.
Electric control system Dual industrial mainframe and dual system control ensure the continuous progress of the production process and reduce the shutdown, waste products and possible accidents caused by computer failure.
