SLB TYPE-Batch drum mixing

This series of asphalt equipment combines the advantages of traditional mixers with the remarkable characteristics of emerging mixers. It brings a proven design to the market for pavement construction and maintenance.

Capacity: 8-30T/H

Delivery: 25 days

Warranty: 13 months

Equipment highlights: Energy saving effect; Easy to install, operate and transport

INQUIRY 0086-311-85170210

Recommended reason
Technical highlights
Prodcts parameters
Equipment advantages
Engineering example
Online Message

INQUIRY

Recommended reason

Technical highlights

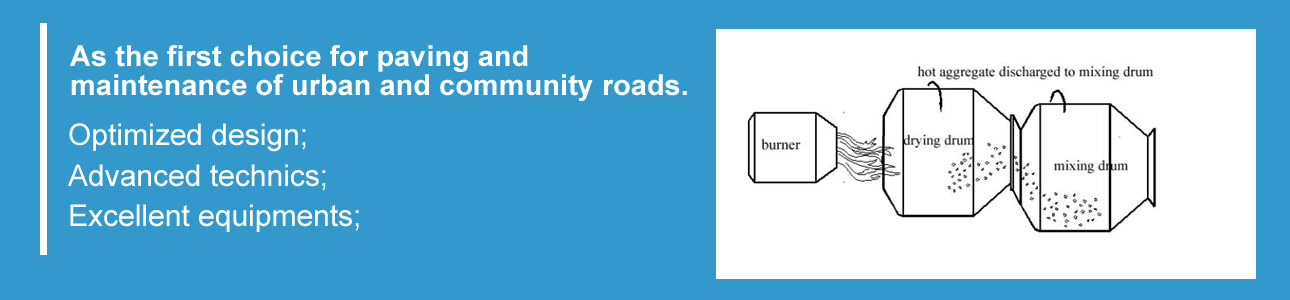

1. The mixer puts the cylindrical drum as its main structure. Material feeding and drying are done at proper intervals, which ensures high mixing efficiency.

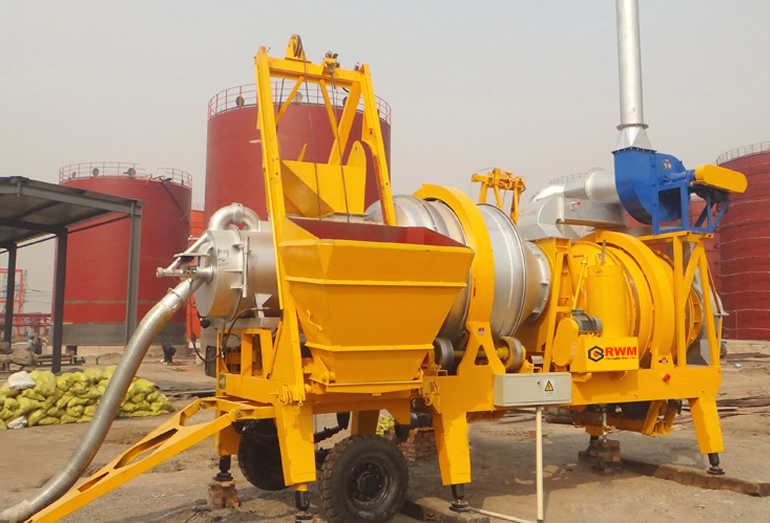

2. The light, compact asphalt plant is also highly flexible. The trailer chassis can be easily and conveniently transferred to the job site.

3. The plant is highly versatile. By adding different pulverized minerals, it can mix a variety of asphalt recipes.

4. Bitumen is fed into the batching container at a specific time and volume to assure an accurate bitumen-oil ratio, facilitating ratio adjustment.

5. The plant features stable mixing temperature and uniform blending. The unique bag-house avoids the weakness of single drum mixer where the bitumen is susceptible to ageing.

6. Touch screen allows straightforward control. The PLC system allows for automatic, semi-automatic, and manual operations.

7. The novel burner design can both use coal and oil as fuel. Ignition is done electronically and automatically. Complete combustion can be guaranteed for high heat efficiency. No slag should be formed inside the batcher.

Prodcts parameters

Item	SLB-8	SLB-10	SLB-15	SLB-20	SLB-30
Rated productivity	8tph	10tph	15tph	20tph	30tph
Suitable material	bitumen, aggregate	bitumen, aggregate	bitumen, aggregate	bitumen, aggregate	bitumen, aggregate
Feeder hopper capacity	400kg	500kg	750kg	1,000kg	1,500kg
Main power	oil burner 23kW, coal burner 39kW	oil burner 27kW, coal burner 43kW	oil burner 32kW, coal burner 53kW	oil burner 45kW, coal burner 70kW	oil burner 53kW, coal burner 84kW
Product temperature	120~165°C, adjustable	120~165°C, adjustable	120~165°C, adjustable	120~165°C, adjustable	120~165°C, adjustable
Burner	oil, or coal and oil	oil, coal and oil	oil, coal and oil	oil, coal and oil	oil, coal and oil
Control system	PLC, auto/manual, electronic cabinet and control panel, touch screen			PLC, auto-control and manually, electronic cabin and control panel,touch screen, control room
Fuel consumption	Oil: 5 ~7.5 kg/t Coal: 13~15 kg/t
Optionnal	Aggregate batcher, Storage silo, Coal miller, Wet filter, Bag filter, Bitumen heating tank
