CDHB TYPE-Continuous drum mixing

The overall structure design is compact, convenient for transportation, high production efficiency, relatively low equipment price and many other advantages

Capacity: 20-120T/H

Delivery: 30 days

Warranty: 13 months

Equipment highlights: Module installation, stable output, Siemens electronic control, fully automatic computer operation

INQUIRY 0086-311-85170210

Recommended reason
Technical highlights
Prodcts parameters
Equipment advantages
Engineering example
Online Message

INQUIRY

Recommended reason

Technical highlights

1. Ultra low power consumption, large production capacity, fuel consumption is lower under the condition of same capacity.

2. Equipment consistent is simple and with reliability, low failure rate, easy to move and maintain, low equipment investment.

3. Has strong and simple RAP expending ability.

4. Need no installation foundation (only need simple smooth and harden).

5. Kinds of each material successive, can guarantee the continuous of mixing time and space, form flow line production.

6. The application of latest international weighting technology, can guarantee the precision of each material, has a revolutionary innovation compared with traditional continuous asphalt mixing plant.

7. International classic control design philosophy and practice, easy to operate.

Prodcts parameters

Model	CDHB-60	CDHB-80	Comments
Capacity	60 t/h	80 t/h	Standard condition
Total Power	112 kW	184 kW
Cold Aggregate	4	4
Drying Drum Capacity	60 t/h	80 t/h	5% Moisture
Fuel Consumption	6.5kg/t	6.5kg/t
Fuel Type	Heavy/Diesel oil	Heavy/Diesel oil	Coal for optional
Control System	Manual/Automatic	Manual/Automatic
Finished Asphalt Temperature	140-180℃	140-180℃
Aggregate Weighting Precision	±1%	±1%	Continuous measurement
Filler Weighting Precision	±0.5%	±0.5%	Continuous measurement

Equipment advantages

TTEM	Detaied

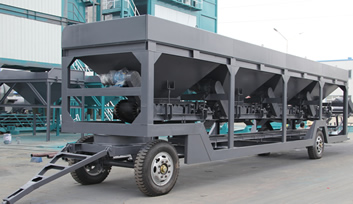

01 Cold aggregate feed system	It can make aggregate material of four different sizes mixed well according to the construction requirement, for the oversized grain, it will be separated by the middle screen, and the qualified material will be conveyed into drying drum by tilted belt conveyer.

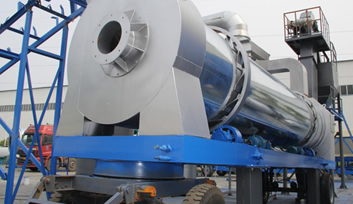

02 Drum Dryer mix	The dryer drum features a unique lifting pattern to cascade the material through the hot air stream. Bitumen and fillers are added at the drum discharge end. Steel support rollers are provided to allow for sudden plant stops.

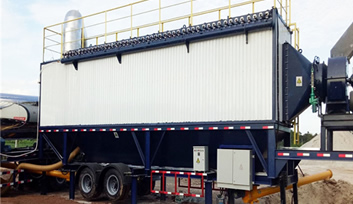

03 Dust Filter	Dust laden air can be filtered through a fabric filter where environmental legislation demands. Mounted on the main chassis, the exhaust fan draws air through specially designed fabric filter bags. Collected dust is screwed back into the mixing section of the drum.

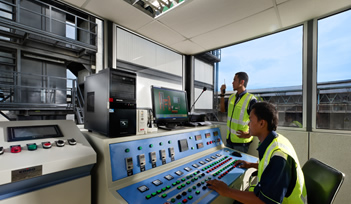

04 Control System	1. PLC system allows for fully-automatic, semi-automatic, or manual operation. 2. Main process data will be recorded and printed. 3. Diversified, practical processing procedures facilitate the management of batching and production parameters. 4. Responsive, accurate fault monitoring and alarming system ensures safety operation.
